miniBOOSTER
HC3 Series Booster
HC3 versions: 11 different intensification factors PIN: 20–207 bar (inlet pressure) PH: 500 bar maximum (outlet pressure) PRETURN: As low as possible (return pressure to tank) POUTLET: PH = (PIN – PReturn) i (intensification) Mounting: NG6 (D03) stacking manifold system Accessories: Pilot-operated dump valve available A model = no dump valve B model =...
HC2DW Series Booster
HC2DW versions: 8 different intensification factors PIN: Inlet pressure 20-207 bar PH: 800 bar maximum (outlet pressure) PRETURN: As low as possible (return pressure to tank) POUTLET: PH = (PIN – PReturn) I (intensification) Mounting: Inline tube Accessories: Pilot-operated dump valve available A model = no dump valve B model = with dump valve G model =...
HC2W Series Booster
C2W versions: 11 different intensification factors PIN: Inlet pressure 20-207 bar PH: 800 bar maximum (outlet pressure) PRETURN: As low as possible (return pressure to tank) POUTLET: PH = (PIN – PReturn) i (intensification) Mounting: Inline tube Accessories: Pilot-operated dump valve available A model = no dump valve B model = with dump valve G model =...
HC2D2W Series Booster
HC2D2W versions: 8 different intensification factors PIN: 20 – 207 bar (inlet pressure) PH: 800 bar maximum (outlet pressure) PRETURN: As low as possible (return pressure to tank) POUTLET: PH = (PIN – PReturn) i (intensification) The intensification ratio is related to the inlet pressure at media 2, the values in the table are measured at 1 bar on media...
HC2D2 Series Booster
HC2D2 versions: 8 different intensification factors PIN: 20 – 207 bar (inlet pressure) PH: 800 bar maximum (outlet pressure) PRETURN: As low as possible (return pressure to tank) POUTLET: PH = (PIN – PReturn) i (intensification) The intensification ratio is related to the inlet pressure at media 2, the values in the table are measured at 1 bar on media 2...
HC2P Series Booster
HC2P versions: 10 different intensification factors PIN: 0.4 bar vacuum to 2 bar in suction line (inlet pressure) PH: 800 bar maximum (outlet pressure) POUTLET PH = (PIN – PReturn) i (intensification) Mounting: Inline tube Rotation speed: Minimum 1,200 min-1 / maximum 3,000 Min-1 Starting torque: Maximum starting torque 0.14 Nm Power consumption: 87 W...
HC2D-D Series Booster
Up to 2.5 times the volume HC2D-D versions: 13 different intensification factors PIN: 20 – 207 bar (inlet pressure) PRETURN: As low as possible (return pressure to tank) PH: 800 bar maximum (outlet pressure) POUTLET: PH = (PIN – PReturn) X i (intensification) Mounting: Flange, manifold system miniBOOSTER pattern Accessories: Pilot-operated dump valve...
HC2D Series Booster
Up to 2.5 times the volume HC2D versions: 13 different intensification factors PIN: 20-207 bar (inlet pressure) PH: 800 bar maximum (outlet pressure) PRETURN: As low as possible (return pressure to tank) POUTLET: PH = (PIN – PReturn) x i (intensification) Mounting: Inline tube Accessories: Pilot-operated dump valve available A model = no dump valve B...
HC2 Series Booster
HC2 versions: 11 different intensification factors PIN: 20–207 bar (inlet pressure) PH: 800 bar maximum (outlet pressure) PRETURN: As low as possible (return pressure to tank) POUTLET: PH = (PIN – PReturn) i (intensification) Mounting: Inline tube Accessories: Pilot-operated dump valve available A model = no dump valve B model = with dump valve G model =...
HC1W Series Booster
HC1W versions: 9 different intensification factors PIN: 20 – 207 bar (inlet pressure) PRETURN: As low as possible (return pressure to tank) PH: 800 bar maximum (outlet pressure) POUTLET: PH = (PIN – PReturn) x I (intensification) Mounting: Inline tube A model = no dump valve B model = with dump valve G model = direct proportionally controlled

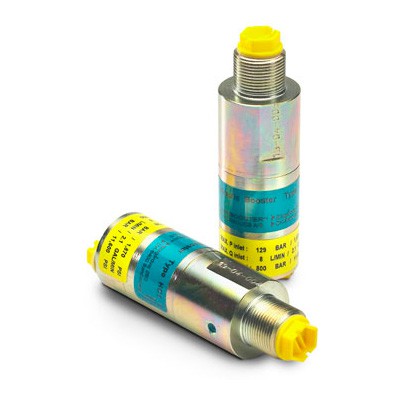

HC1 Series Booster
The HC1 is the most compact miniBOOSTER unit weighing only 0.7 kg. It is ideal for use in applications where it is desirable to mount the unit on or in a tool, power pack, or other device. The HC1 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the...
