Casappa
Variable Displacement TVP Piston Pump
TVP Features Variable displacement axial piston pumps swash plate design ideally suited for open circuit truck applications. The compact design allows to be mounted directly on the PTOs. Displacements from 3.66 in³/rev (60 cm³/rev) to 5.17 in³/rev (84,7 cm³/rev). Max. peak pressure up to 5800 psi (400 bar). Max. speed up to 3000 min
Variable Displacement Plata LVP Piston Pump
Plata [LVP] Features Variable displacement axial piston pumps swash plate design. PLATA pumps are ideally suited for medium and high pressure open circuit applications. Displacements from 1.75 in³/rev (28,7 cm³/rev) to 5.36 in³/rev (87,9 cm³/rev) Max. peak pressure up to 5075 psi (350 bar) Max. speed up to 3000 min-1
Variable Displacement Plata Piston/Gear Pumps
Plata [DVP-SVP] Features Variable displacement axial piston pumps swash plate design for open circuit applications. SVP single flow, DVP dual flow on piston pump and an additional piggybacked gear pump. The automatic overall torque limiter allows to optimize the performance of the machine. SVP and DVP pumps has been designed specifically for mini...
Variable Displacement MVP Piston Pump
MVP - MVPD Features Variable displacement axial piston pumps swash plate design ideally suited for open circuit in mobile hydraulic applications. The compact design allows to be mounted directly on engine motors. The new "MVPD" series allow higher flow rates than traditional pumps with the same dimension, higher machine speeds without affecting the...
Ikron Filters
IKRON filters Features Ikron “Fluid Filtration” from Casappa “Fluid Power Design” Accurate filtration that expands the life of all components and improves the overall efficiency of your hydraulic system.
Double Acting Hand Pump
Up Easy [EP] Features Double acting hand pumps providing flow in both directions of lever movement. Displacements from 0.73 in³/cycle (12 cm³/cycle) to 2.75 in³/cycle (45 cm³/cycle). Max. pressure 4568 psi (315 bar).

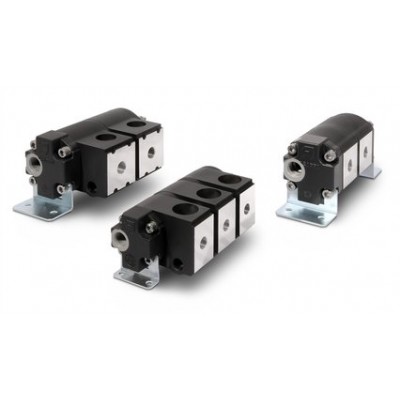

Casappa Polaris Gear Flow Divider
Polaris [PLD] Features Gear flow dividers made of high resistance aluminium alloy. These components can be used as flow equalizers, flow dividers and pressure intensifiers. Displacements from 0.13 in³/rev (2,14 cm³/rev) to 2.01 in³/rev (33,03 cm³/rev) available in groups 10 and 20. Max. peak pressure up to 4060 psi (280 bar).

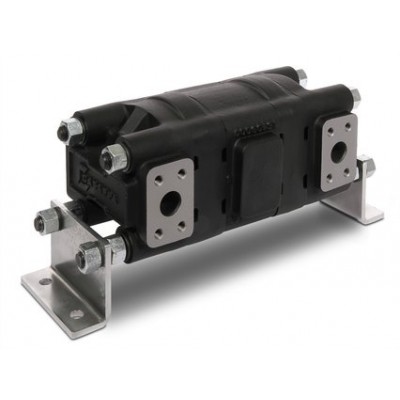

Casappa - Magnum Gear Flow Divider
Magnum [HDD] Features Gear flow dividers made of cast iron. These components can be used as flow equalizers, flow dividers and pressure intensifiers. Displacements from 1.05 in³/rev (17,28 cm³/rev) to 7.66 in³/rev (125,63 cm³/rev) available in groups 30 and 35. Max. peak pressure up to 4640 psi (320 bar).
Fixed Displacement Strada Piston Pumps
Strada [BAP] Features Fixed displacement bent axis piston pumps. STRADA pumps are ideally suited for PTOs applications in vehicles. Displacements from 2.49 in³/rev (40,9 cm³/rev) to 6.71 in³/rev (110 cm³/rev) available in groups 32 and 37. Max. peak pressure up to 5800 psi (400 bar). Max. speed up to 2950 min-1.
Fixed Displacement Plata Piston Pump/Motor
Plata [LF] Features Fixed displacement axial piston pumps and motors swash plate design for open circuit applications. The design is extremely compact and it can integrate many functions. An electrically controlled valve can be fitted on the pump and an electronic board controls the flow and the speed of the powered motor. Unidirectional pumps LFP48:...
Cast Iron Polaris Gear Pump
Polaris [PH] Features Gear pumps and motors built in three pieces with cast iron body. The new gear pumps and motors "PH" series is an evolution of the "POLARIS" series. "POLARIS PH" has a new body made of cast iron to have higher operating parameters and keep the full POLARIS versatility regarding shafts, flanges, ports and built-in valves. This project...
