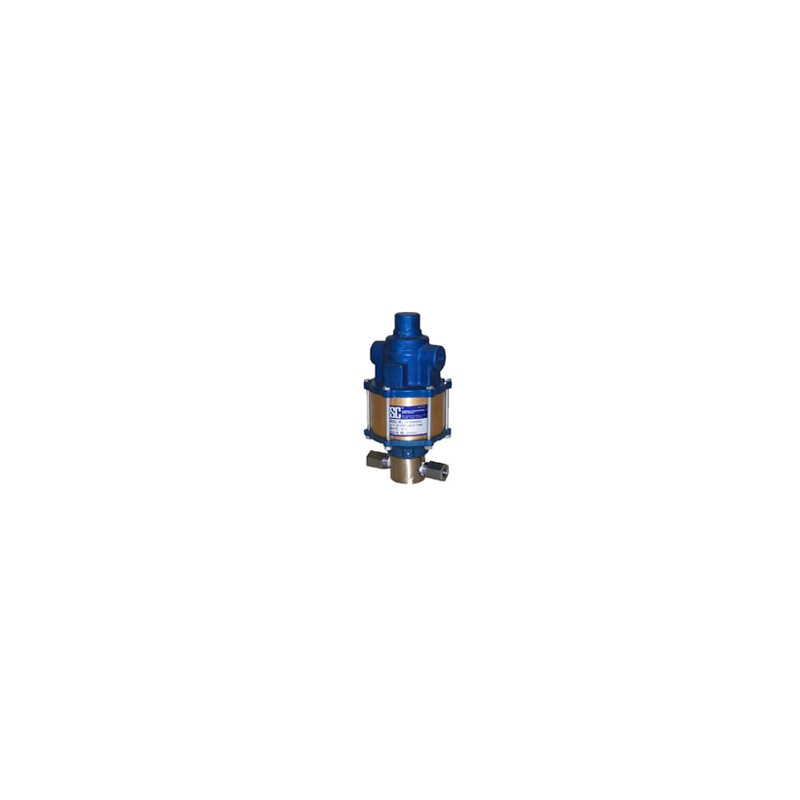

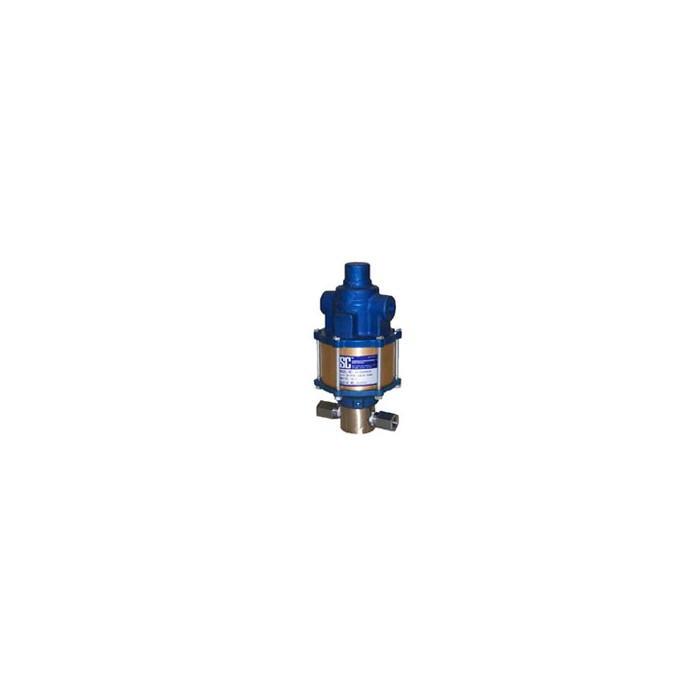

10-4 Series Liquid Pump
SC

10-4 Series Liquid Pump

HIGH OUTPUT CAPACITY

GUARANTEED PERFORMANCE

MULTIPLE OUTPUT CAPACITIES

SIMPLE OPERATION PRINCIPLE

DESIGNED FOR EASY MAINTENANCE

WIDE RANGE OF OPERATING PRESSURES

10-4 Series pumps have a 4" diameter air piston and a 1 �" stroke. Nine models are available with pressures up to 22,000 psig.

When operating from 0 to rated hydraulic pressure, air consumption will be approximately 14 scfm of free air at 100 psi output. At lower air pressures and higher hydraulic pressures, air consumption will be reduced proportionately to flow rates indicated.

Application

  • Staking

  • Piercing

  • Blanking

  • Pressing

  • Clamping

  • Metal forming

  • Static and burst testing

  • Hydraulic Press operation

  • Flow testing requiring relatively low flows at high pressures

  • Applications requiring extreme intermittent pressure and velocity commonly associated with water blasting and jetting.

10 & D Series Liquid Pumps

Download (515.79k)
