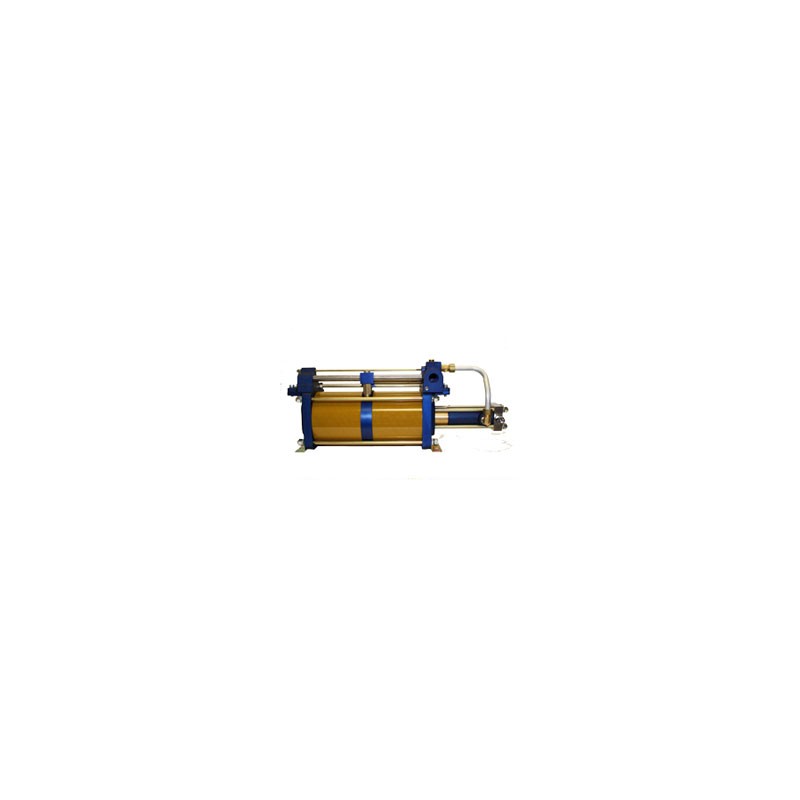

GB-D Series Booster
SC

GB-D Series Booster

REQUIRES NO LUBRICATION

LOW FLOW, MEDIUM PRESSURE

REMOTE CONTROL CAPABILITIES

OIL-FREE HIGH PRESSURE SECTION

NOMINAL PRESSURES UP TO 15,000-PSI

AIR OPERATED � DOES NOT REQUIRE ELECTRICITY

This series has the same characteristics of the standard GB Series however the double head allows half the input pressure to achieve the same outlet pressure.

Application

  • LASER CUTTING

  • LEAK DETECTION

  • PRESSURE TESTING VESSELS

  • LOW PRESSURE GAS RECOVERY

  • CHARGING OF NITROGEN BOTTLES

  • GAS ASSISTED INJECTION MOLDING

  • AIRCRAFT SLIDE CHUTE GAS STORAGE

  • CHARGING OF NITROGEN ACCUMULATORS

  • TRANSFER OF SF6 FOR ARC SUPPRESSION

  • TRANSFER OF SF6 FOR CIRCUIT BREAKER INSULATION

  • BOOSTING PRESSURE FROM NITROGEN GENERATORS

SC Gas Booster Series
