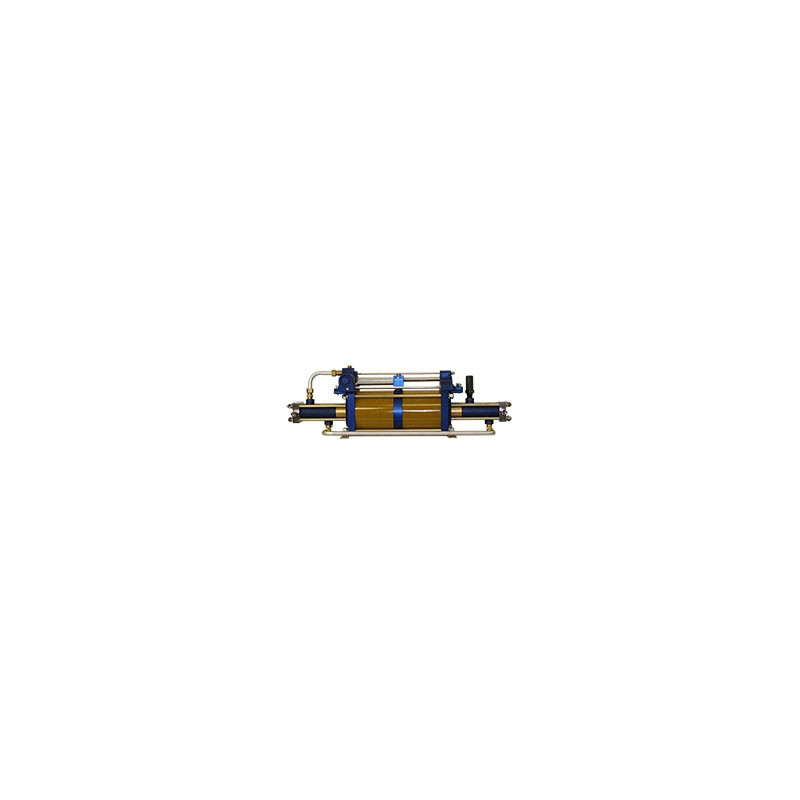

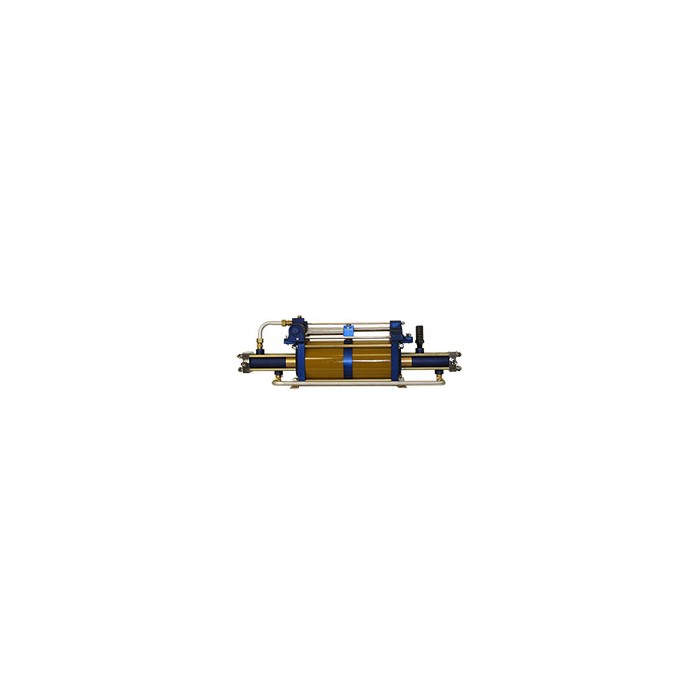

GBD-D Series Booster
SC

GBD-D Series Booster

REQUIRES NO LUBRICATION.

HIGH FLOW, MEDIUM PRESSURE.

REMOTE CONTROL CAPABILITIES.

OIL-FREE HIGH PRESSURE SECTION.

NOMINAL PRESSURES UP TO 12,500-PSI. AIR OPERATED � DOES NOT REQUIRE ELECTRICITY

This series has the same characteristics of the standard GBD however the double head allows half the input pressure to achieve the same outlet pressure.

Application

  • LASER CUTTING

  • LEAK DETECTION

  • PRESSURE TESTING VESSELS

  • LOW PRESSURE GAS RECOVERY

  • CHARGING OF NITROGEN BOTTLES

  • GAS ASSISTED INJECTION MOLDING

  • AIRCRAFT SLIDE CHUTE GAS STORAGE

  • CHARGING OF NITROGEN ACCUMULATORS

  • TRANSFER OF SF6 FOR ARC SUPPRESSION

  • TRANSFER OF SF6 FOR CIRCUIT BREAKER INSULATION

  • BOOSTING PRESSURE FROM NITROGEN GENERATORS

SC Gas Booster Series

Download (799.84k)
