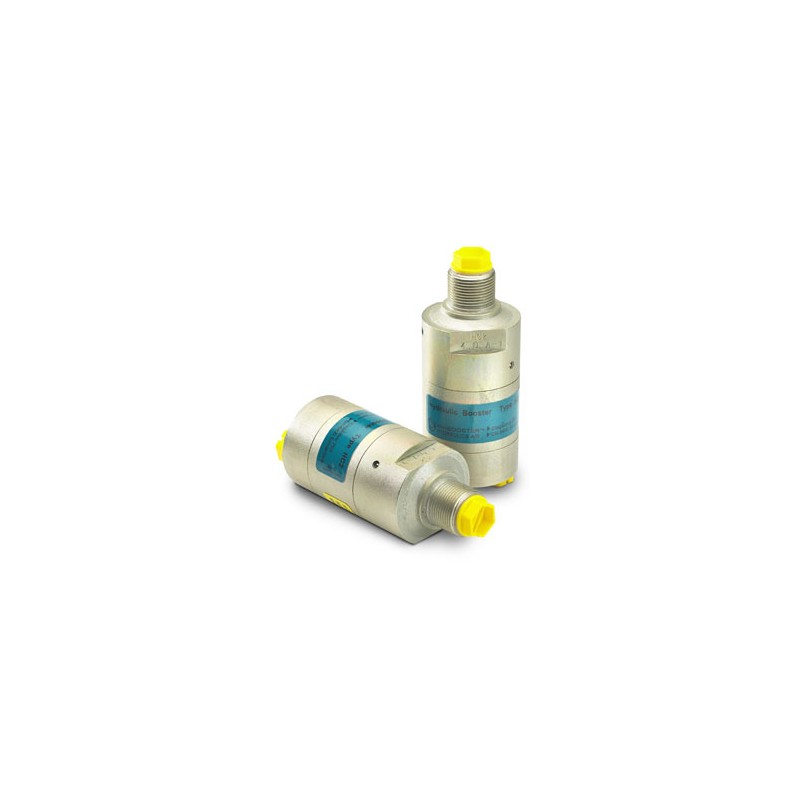

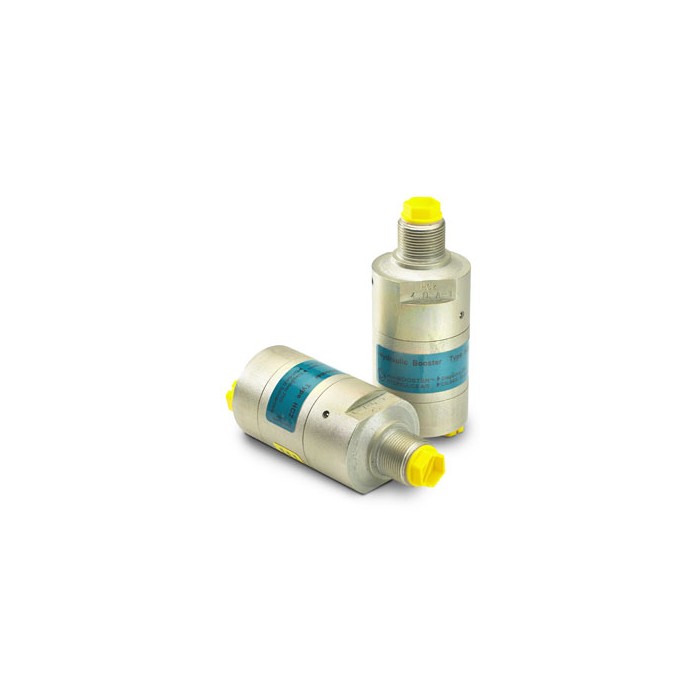

HC2 Series Booster
miniBOOSTER

HC2 Series Booster

HC2 versions: 11 different intensification factors

PIN: 20–207 bar (inlet pressure)

PH: 800 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) i (intensification)

Mounting: Inline tube

Accessories:

Pilot-operated dump valve available

A model = no dump valve

B model = with dump valve

G model = direct proportionally controlled

The HC2 is a compact unit weighing only 1.0 kg. It is ideal for use in a variety of applications where building and maintaining high pressure is required.

The HC2 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.

MiniBooster HC2 Series

Download (668.57k)
