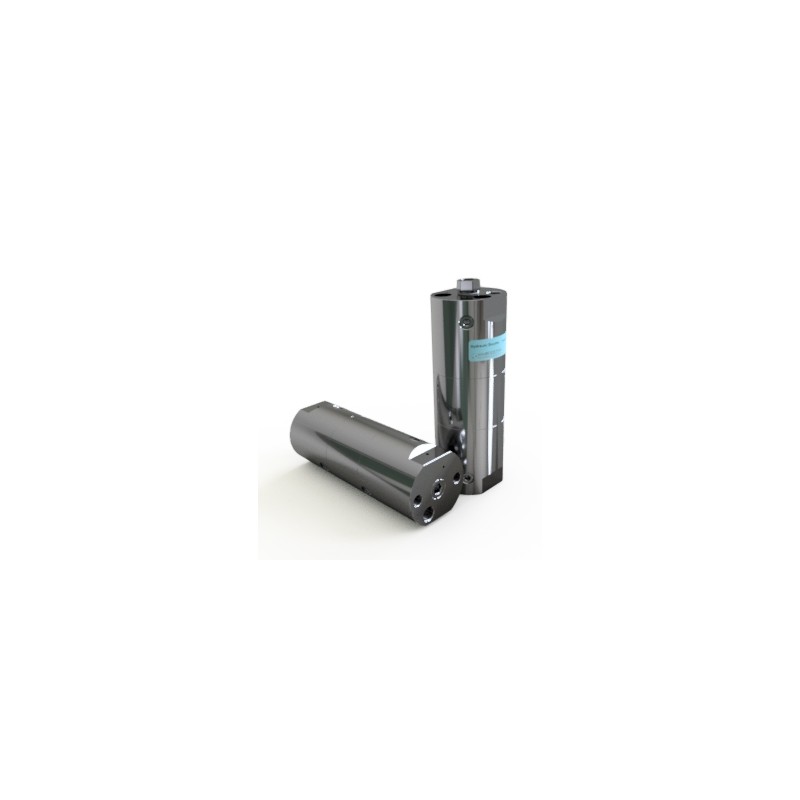

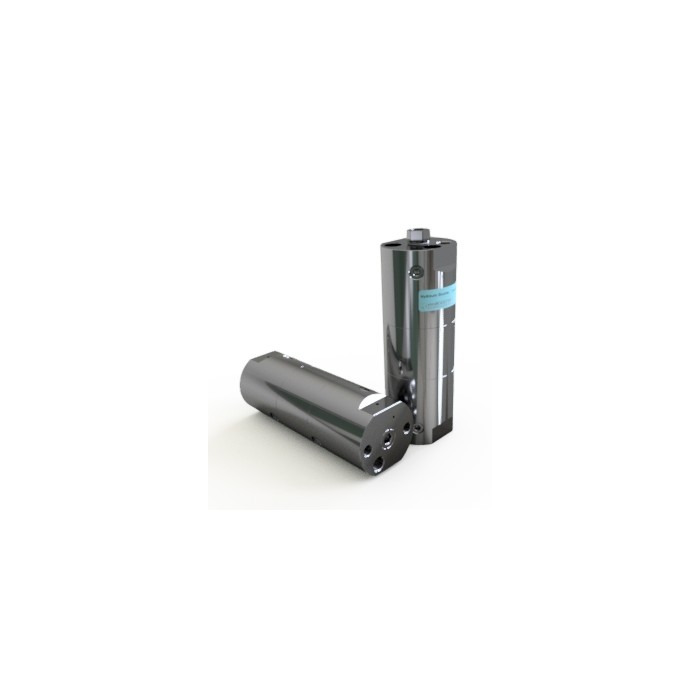

HC2D2W Series Booster
miniBOOSTER

HC2D2W Series Booster

HC2D2W versions: 8 different intensification factors

PIN: 20 – 207 bar (inlet pressure)

PH: 800 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) i (intensification) The intensification ratio is related to the inlet pressure at media 2, the values in the table are measured at 1 bar on media 2

Drain connections: Max. 5 bar

Mounting: Inline tube

A model = no dump valve

HC2D2W is a dual media unit which is capable of delivering up to 4.2 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC2D2W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC2D2W is a compact unit weighing 8.0 kg.
