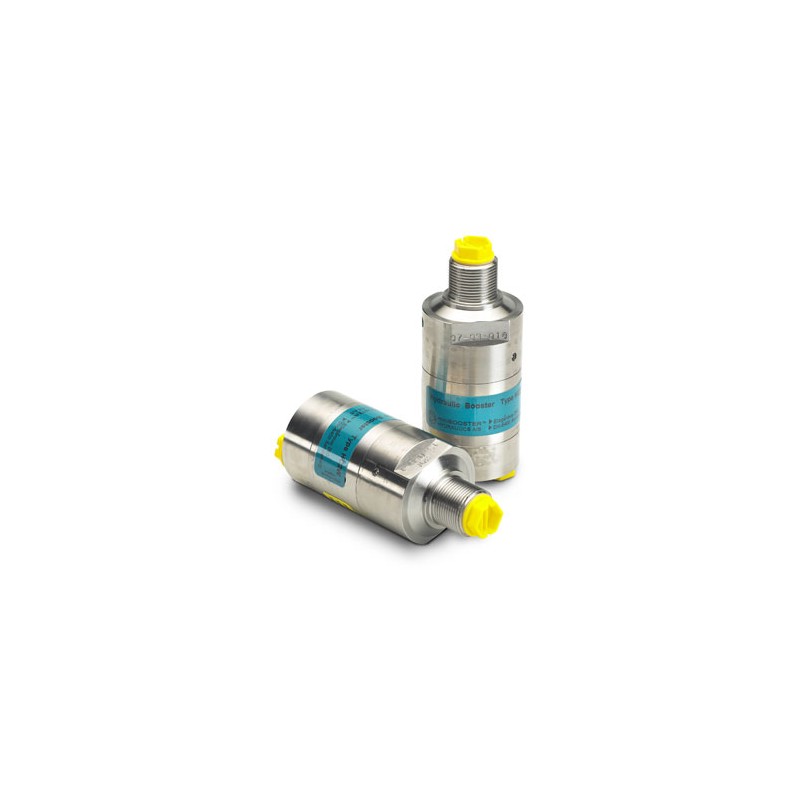

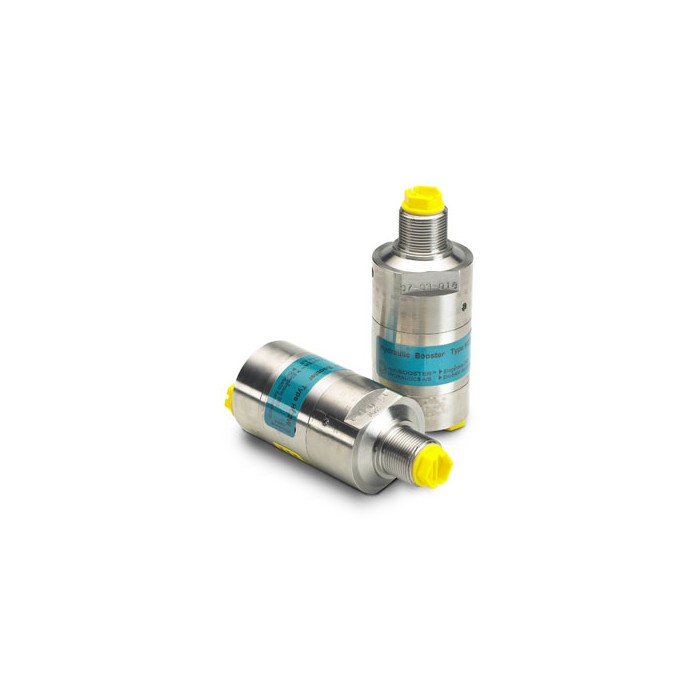

HC2W Series Booster
miniBOOSTER

HC2W Series Booster

C2W versions: 11 different intensification factors

PIN: Inlet pressure 20-207 bar

PH: 800 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) i (intensification)

Mounting: Inline tube

Accessories: Pilot-operated dump valve available

A model = no dump valve B model = with dump valve G model = direct proportionally controlled

The HC2W is a compact stainless steel unit weighing only 1.0 kg. It is ideal for use in a variety of applications where building and maintaining high pressure is required.

The HC2W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.

MiniBooster HC2W Series

Download (191.29k)
