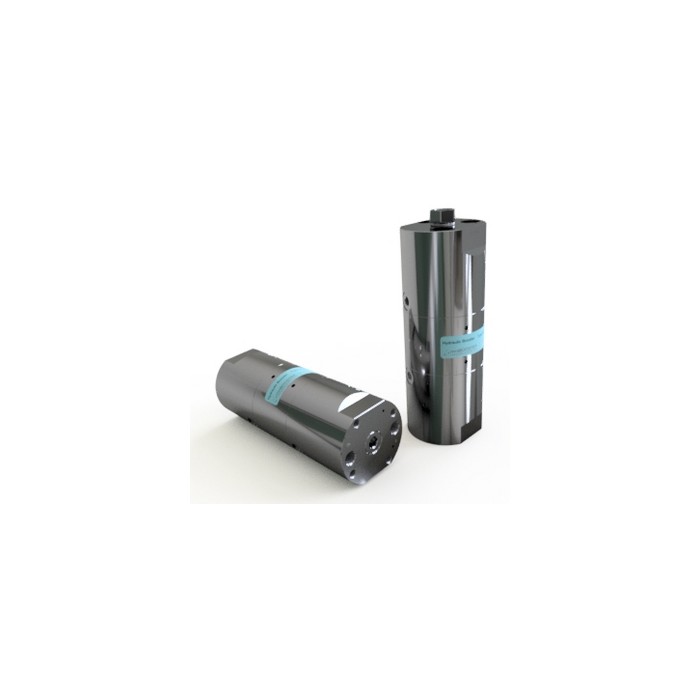

HC2DW Series Booster
miniBOOSTER

HC2DW Series Booster

HC2DW versions: 8 different intensification factors

PIN: Inlet pressure 20-207 bar

PH: 800 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) I (intensification)

Mounting: Inline tube

Accessories: Pilot-operated dump valve available

A model = no dump valve B model = with dump valve G model = direct proportionally controlled

The HC2DW is a dual-acting stainless unit which is capable of delivering up to 7.8 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC2DW raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC2DW is a compact unit weighing 8.0 kg.
