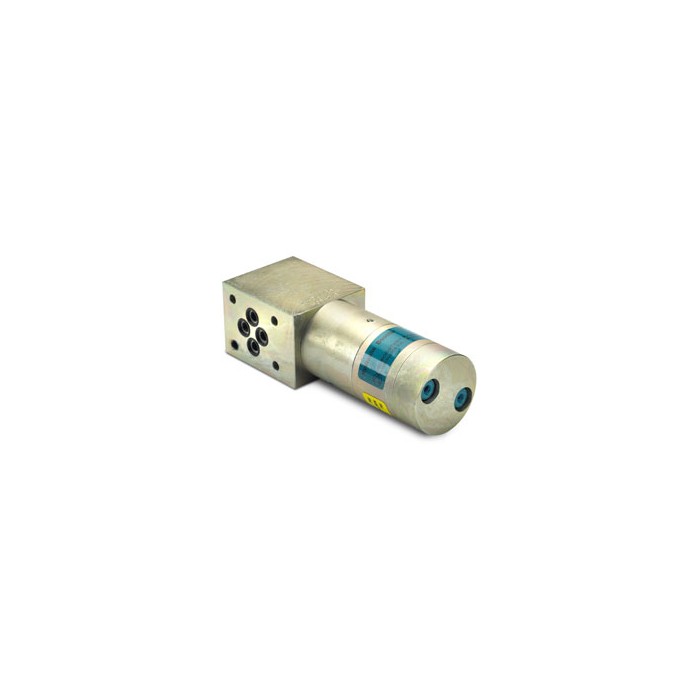

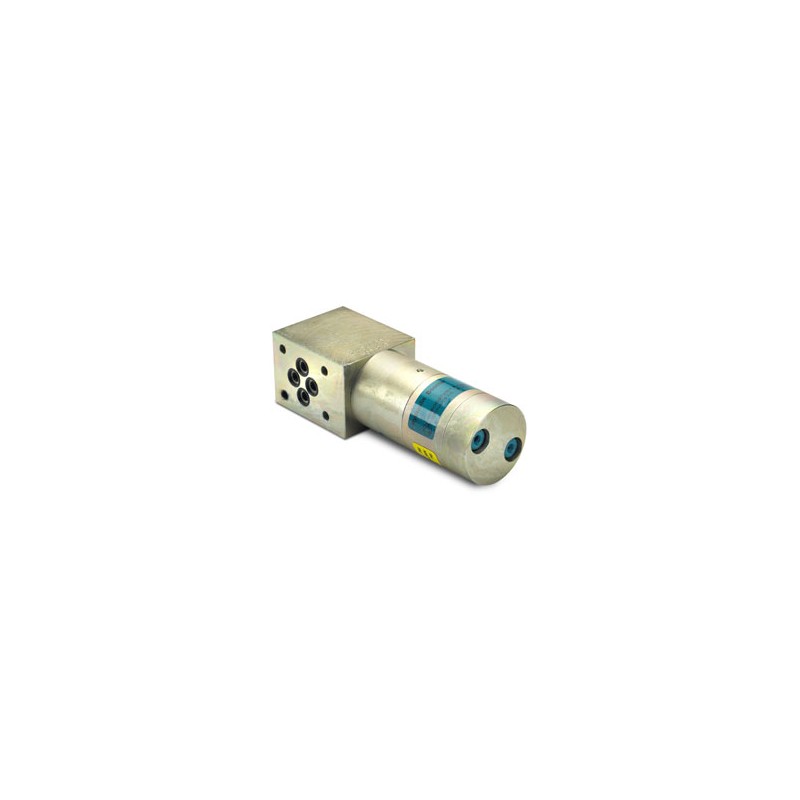

HC3 Series Booster
miniBOOSTER

HC3 Series Booster

HC3 versions: 11 different intensification factors

PIN: 20–207 bar (inlet pressure)

PH: 500 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) i (intensification)

Mounting: NG6 (D03) stacking manifold system

Accessories: Pilot-operated dump valve available

A model = no dump valve B model = with dump valve G model = direct proportionally controlled

The HC3 is a version of the HC2 designed for use in NG6 (D03) stacking manifold systems. It is a compact unit weighing only 2.5 kg. The HC3 has the pilot-operated dump valve incorporated as a standard feature. Maximum outlet pressure is 500 bar in standard versions. Adjustments of the outlet pressure is carried out by varying the supplied pressure

MiniBooster HC3 Series

Download (212.17k)
