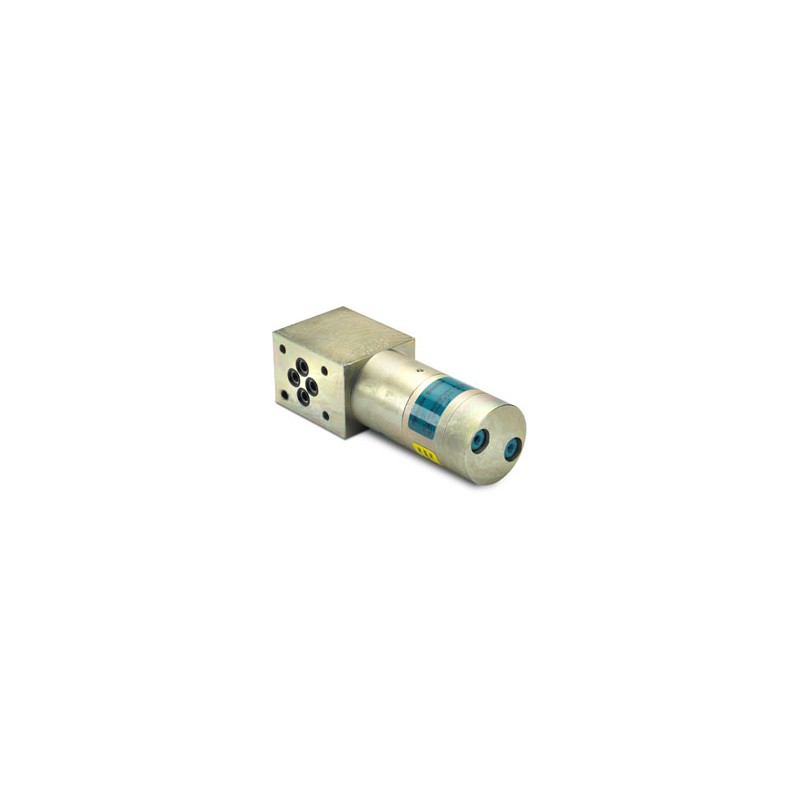

HC3-H Series Booster
miniBOOSTER

HC3-H Series Booster

HC3 - H versions: 11 different intensification factors

PIN: 20–207 bar (inlet pressure)

PH: 500 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) i (intensification)

Mounting: NG6 (D03) stacking manifold system

Accessories: Pilot-operated dump valve available

A model = no dump valve B model = with dump valve G model = direct proportionally controlled

The HC3 - H is a variant of the HC3 with the topside and the B port closed, not needing a top plate. It is designed for use in NG6 (D03) stacking manifold systems. Like the other HC3 units, the HC3-H is a compact unit. The HC3 has the pilot-operated dump valve incorporated as a standard feature. Maximum outlet pressure is 500 bar in standard versions. Adjustments of the outlet pressure is carried out by varying the supplied pressure.

MiniBooster HC3-H Series

Download (174.56k)
