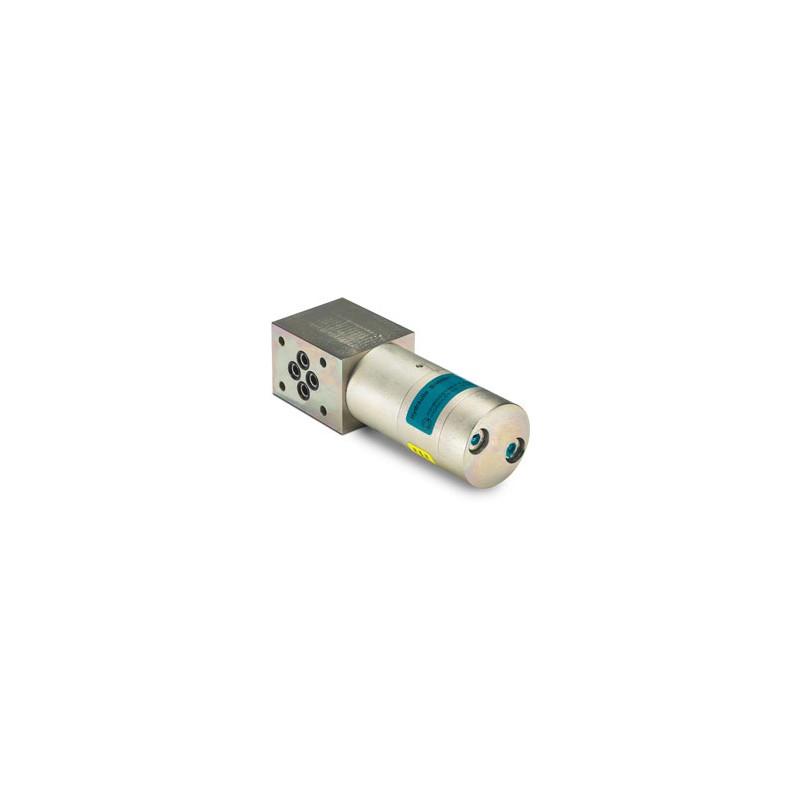

HC3-I Series Booster
miniBOOSTER

HC3-I Series Booster

HC3 - I versions: 11 different intensification factors

PIN: 20 – 207 bar (inlet pressure)

PH: 500 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) i (intensification)

Mounting: NG6 (D03) stacking manifold system

Accessories: Pilot-operated dump valve available A model = no dump valve B model = with dump valve G model = direct proportionally controlled

The HC3-I is a variant of the HC3 providing high-pressure on the B port. It is designed for use in NG6 (D03) stacking manifold systems. The unit is compact weighing only 3.5 kg.

The HC3 has the pilot-operated dump valve incorporated as a standard feature. Maximum outlet pressure is 500 bar in standard versions. Adjustments of the outlet pressure is carried out by varying the supplied pressure.

MiniBooster HC3-I Series

Download (192.75k)
