miniBOOSTERHC6D-D Series Booster

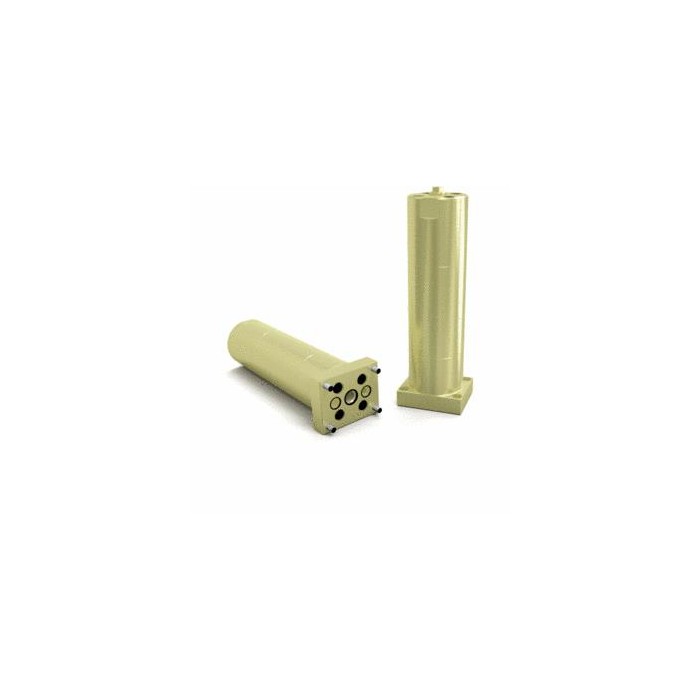

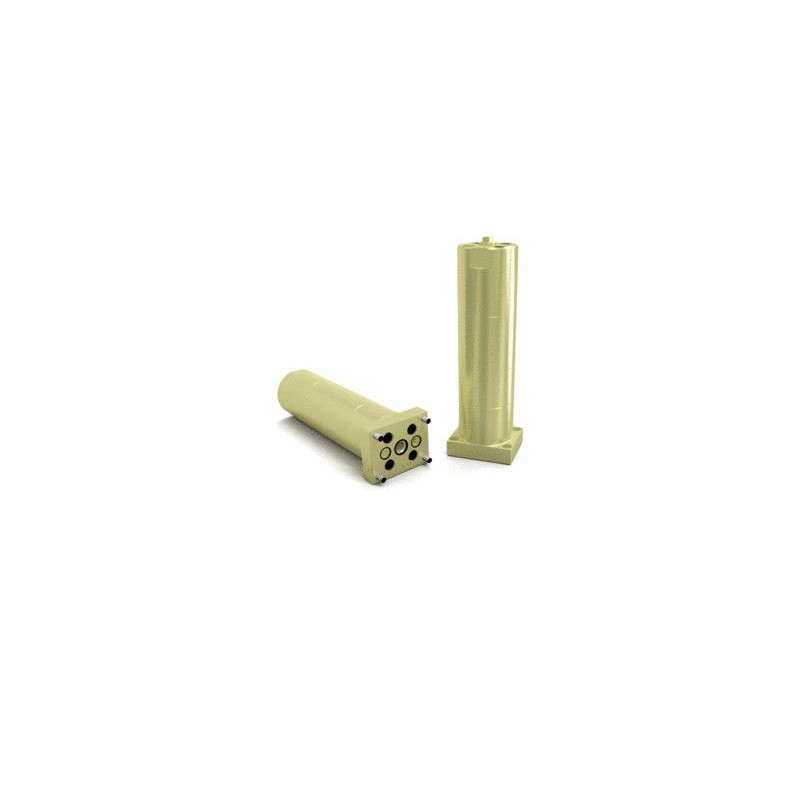

HC6D-D Series Booster
HC6D-D versions: 9 different intensification factors
PIN: 20–207 bar (inlet pressure)
PH: 800 bar maximum (outlet pressure)
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PReturn) i (intensification)
Mounting: Flange, Manifold system miniBOOSTER pattern
Accessories: Pilot-operated dump valve available
A model = no dump valve B model = with dump valve G model = direct proportionally controlled
The HC6D-D is a high-flow dual-acting unit, which is capable of delivering up to 56.0 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC6D-D raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6D-D is a compact unit weighting 20 kg.
