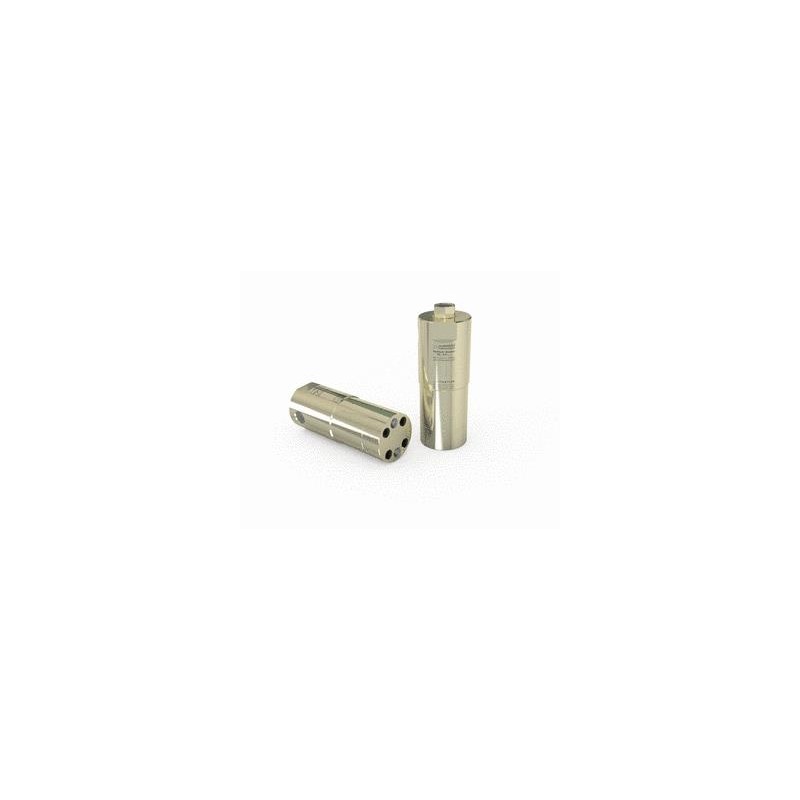

HC6H Series Booster
miniBOOSTER

HC6H Series Booster

HC6H version: 8 intensification factor

PIN: 20 – 207 bar (inlet pressure)

PH: 5,000 bar maximum (outlet pressure)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) I (intensification)

Mounting: Inline tube

Accessories: Pilot-operated dump valve available

A model = no dump valve

B model = with dump valve, up to 3,000 bar

The HC6H is an ultra high-pressure unit which is capable of delivering up to 5,000 bar and 1.0 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC6H raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6H is a compact unit weighing only 11.0 kg.
