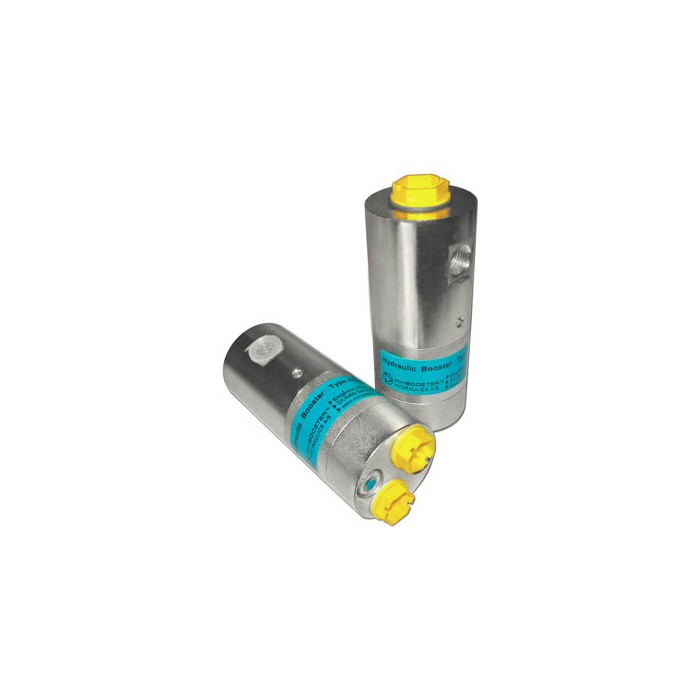

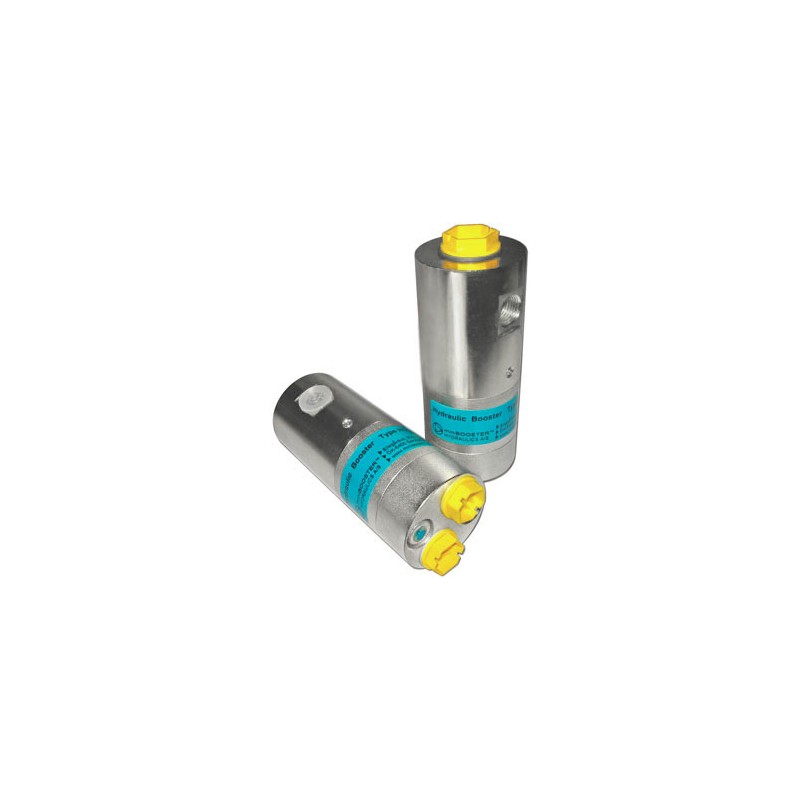

HC7W Series Booster
miniBOOSTER

HC7W Series Booster

HC7W versions: 5 different intensification factors

PIN: 20-207 bar (inlet pressure)

PH: 2,000 bar maximum for media > 5 cSt (mm2/s)

PH: 1,000 bar maximum for media < 5 cSt (mm2/s)

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) x i (intensification)

Mounting: Inline tube

Accessories: Pilot-operated dump valve incorporated

A model = no dump valve B model = with dump valve G model = direct proportionally controlled

The HC7W is a very compact high-pressure unit capable of delivering pressure up to 2,000 bar weighing only 1.5 kg. It is ideal for use with very thin (low viscosity) medias. It is ideal for use in portable applications like on power packs.

The HC7W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of media to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high-pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port.

MiniBooster HC7W Series

Download (270.93k)
