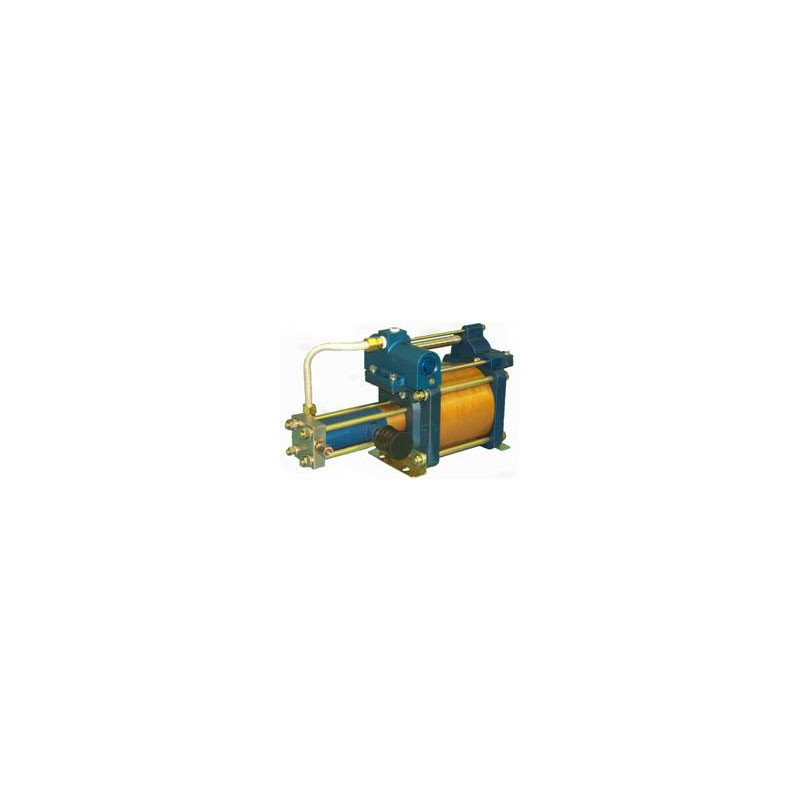

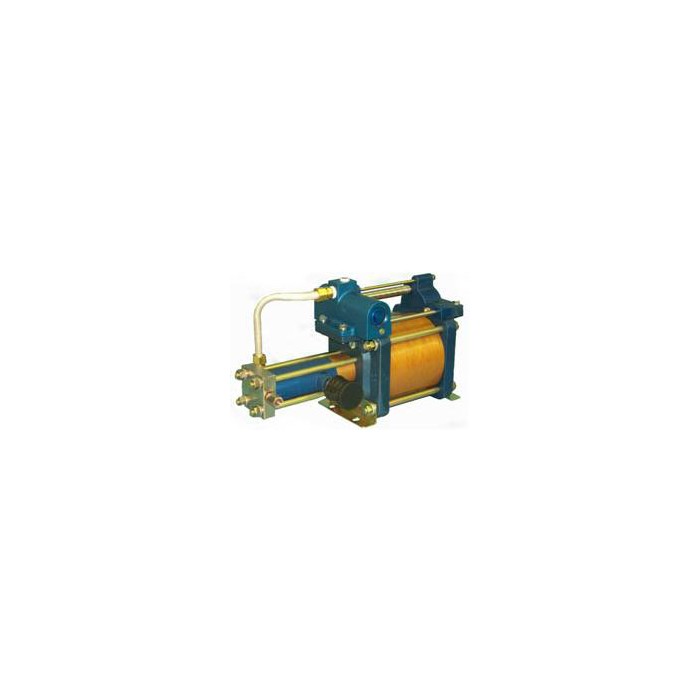

GB Series Gas Booster
SC

GB Series Gas Booster

LOW FLOW, LOW PRESSURE REQUIRES NO LUBRICATION REMOTE CONTROL CAPABILITIES OIL-FREE HIGH PRESSURE SECTION NOMINAL PRESSURES UP TO 7,500-PSI AIR OPERATED

� DOES NOT REQUIRE ELECTRICITY

The GB series is the most economical of the SC Hydraulic Gas Boosters and is ideal for applications not requiring much volume such as pressure testing small vessels or components. Pressures can be boosted from as low as 50 psig and up to over 11,000 psig.

Application

  • LASER CUTTING

  • LEAK DETECTION

  • PRESSURE TESTING VESSELS

  • LOW PRESSURE GAS RECOVERY

  • CHARGING OF NITROGEN BOTTLES

  • GAS ASSISTED INJECTION MOLDING

  • AIRCRAFT SLIDE CHUTE GAS STORAGE

  • CHARGING OF NITROGEN ACCUMULATORS

  • TRANSFER OF SF6 FOR ARC SUPPRESSION

  • TRANSFER OF SF6 FOR CIRCUIT BREAKER INSULATION

  • BOOSTING PRESSURE FROM NITROGEN GENERATORS

SC Gas Booster Series

Download (799.84k)

SC GB Series Gas Booster Spec

Download (100.7k)
