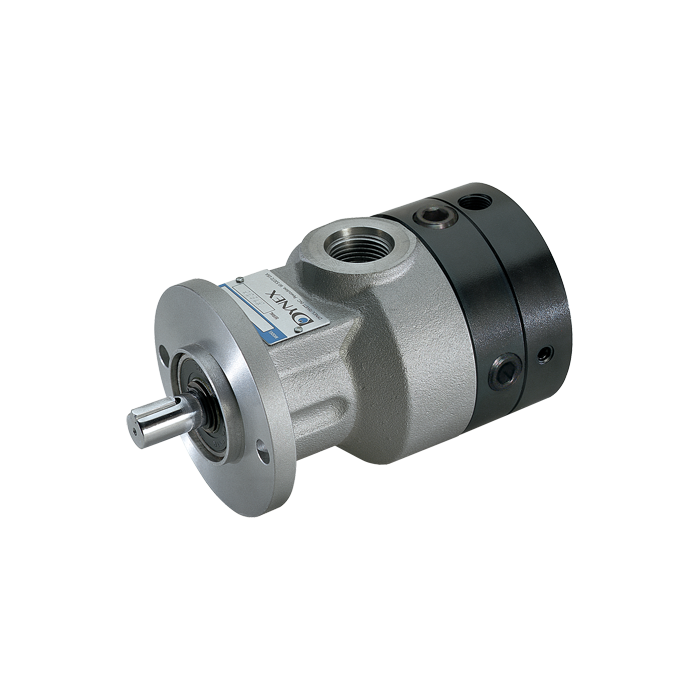

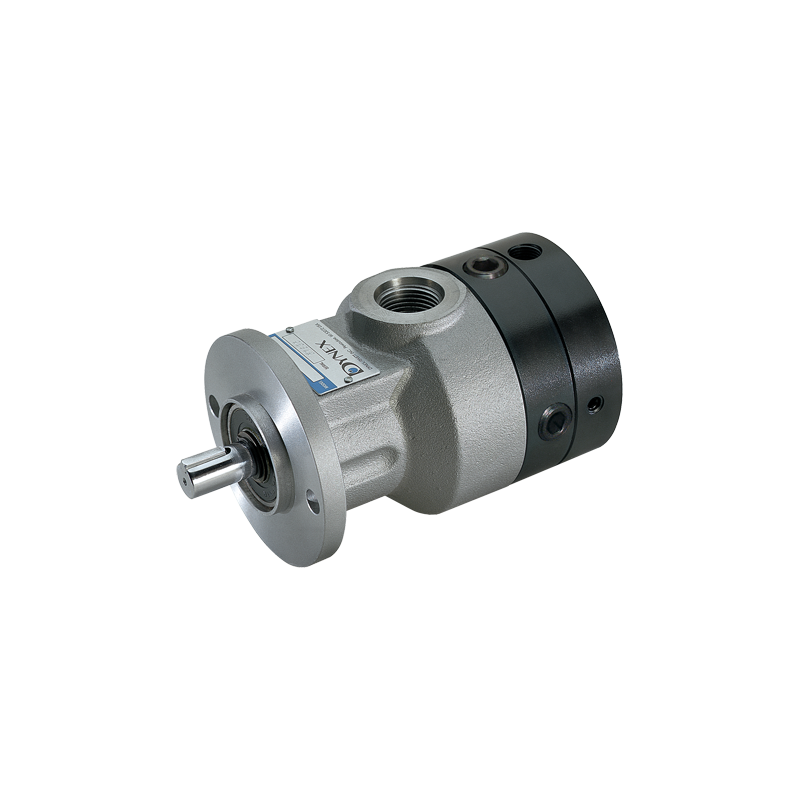

Dynex PF500 Series
Dynex

PF500 Series Pump

PF500 SERIES FIXED DISPLACEMENT CHECKBALL PUMPS

0.21 to 0.69 gpm (0,79 to 2,59 L/min) at 1800 rpm
Rated: 10 000 psi (700 bar), Maximum: 15 000 psi (1040 bar)

  • Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
  • Shaft Options: Standard keyed, Optional spline.
  • Seal Options: Standard Fluorocarbon, Optional EPR seals for use with some phosphate ester fluids, or Fluorocarbon with high pressure shaft seal.
  • Split-Flow® models can supply independent flows from up to four separate outlets.



Dynex PF500 Series Spec.

PF500 SERIES FIXED DISPLACEMENT CHECKBALL PUMPS

Download (272.98k)

Dynex PF500 Services Part List

PF500 SERIES FIXED DISPLACEMENT CHECKBALL PUMPS

Download (224.09k)

Dynex Checkball P/Pump Catalogue

Full catalogue

Download (2.53M)

Dynex Checkball pump Ser. n Inst

Download (818.33k)

Dynex Pump Application Guide

Download (1.76M)
