Dynex PF1000 Series
Dynex

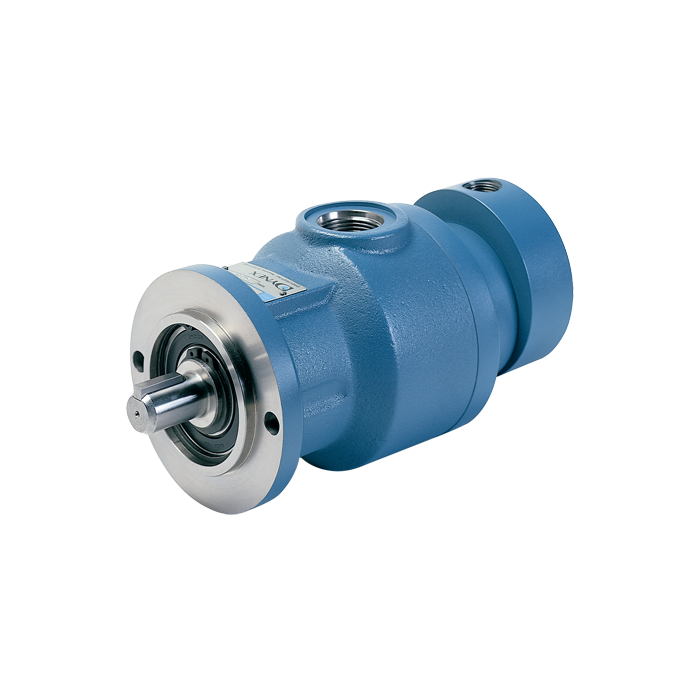

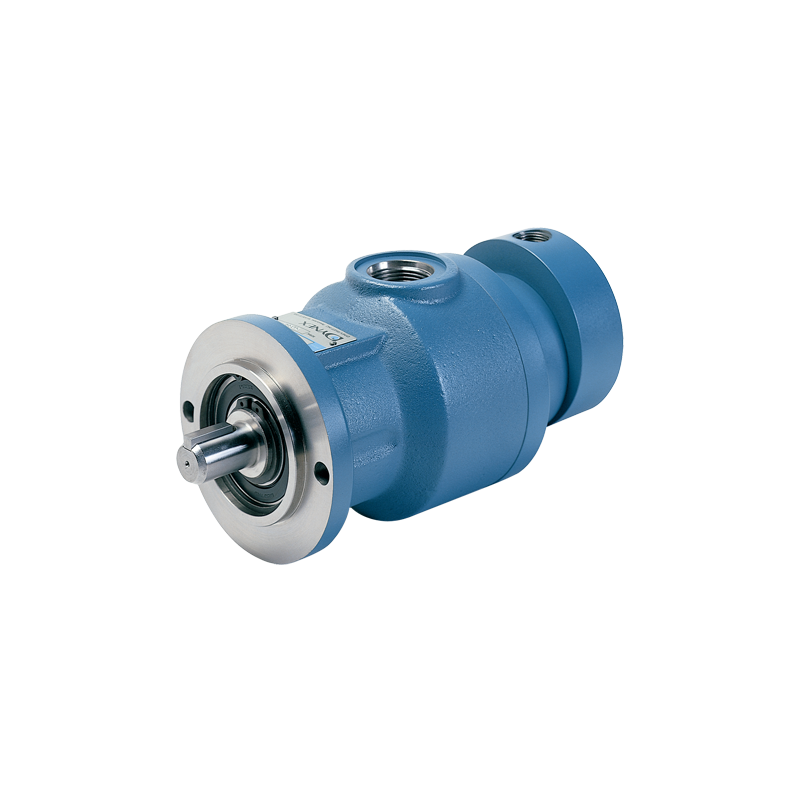

PF1000 Series Pump

PF1000 SERIES FIXED DISPLACEMENT CHECKBALL PUMPS
0.15 to 0.59 gpm (5,7 to 22,3 L/min) at 1800 rpm
Rated: 6 000 psi (420 bar), Maximum: 10 000 psi (700 bar)

  • Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
  • Shaft Options: Standard keyed, Optional spline.
  • Seal Options: Standard Fluorocarbon, Optional EPR seals for use with some phosphate ester fluids, or Fluorocarbon with high pressure shaft seal.
  • Split-Flow® models can supply independent flows from up to four separate outlets.



Dynex Checkball P/Pump Catalogue

Full catalogue

Download (2.53M)

Dynex Checkball pump Ser. n Inst

Download (818.33k)

Dynex Pump Application Guide

Download (1.76M)

Dynex PF1000 Series Pump

Download (393.24k)
