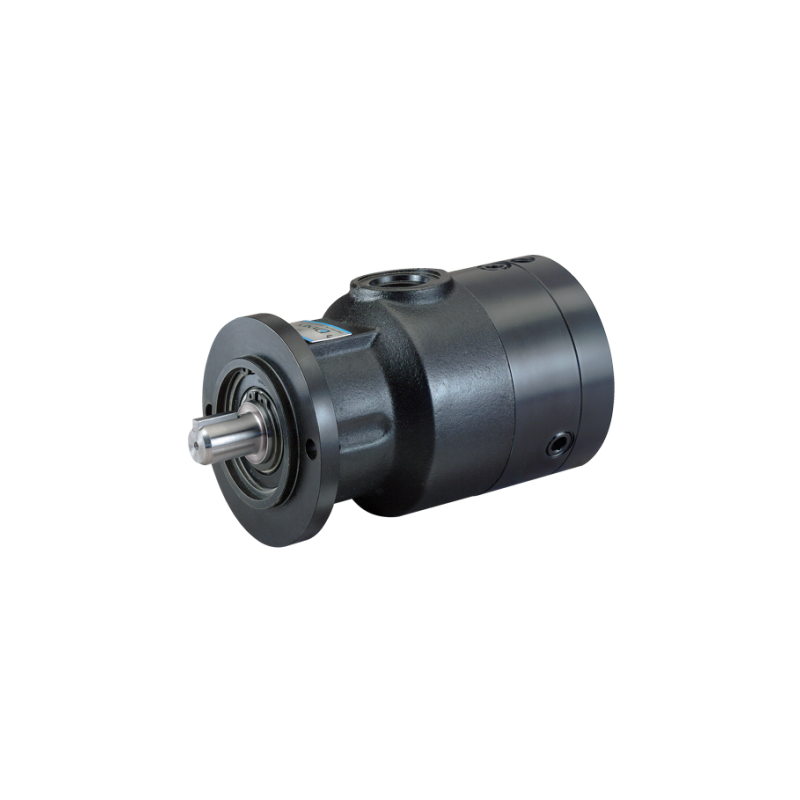

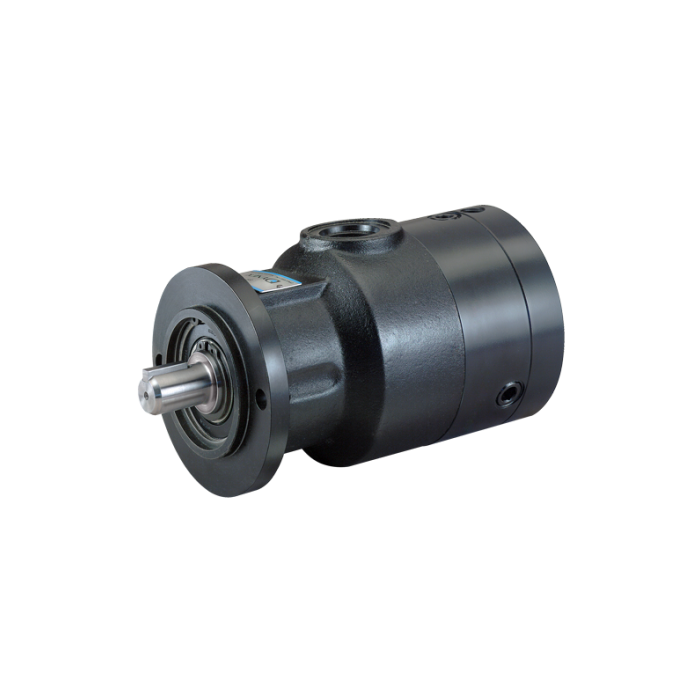

Dynex PF1300 Series
Dynex

PF1300 Series Pump

PF1300 SERIES FIXED DISPLACEMENT CHECKBALL PUMPS
FOR WATER-BASED FLUIDS

0.31 to 1.42 gpm (1,18 to 5,37 L/min) at 1800 rpm
Maximum: 10 000 psi (700 bar)

  • A wide range of fluid compatibility, for reliable operation with low-lubricity, low viscosity fluids.
  • Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
  • Shaft Options: Standard keyed, Optional spline.
  • Seal Options: Standard Fluorocarbon, Optional EPR seals for use with some phosphate ester fluids, or Fluorocarbon with high pressure shaft seal.
  • Single-fluid design eliminates the need for a lubrication circuit.

Dynex Checkball P/Pump Catalogue

Full catalogue

Download (2.53M)

Dynex Checkball pump Ser. n Inst

Download (818.33k)

Dynex Pump Application Guide

Download (1.76M)

Dynex PF1300 Series Pump

Download (278.15k)
