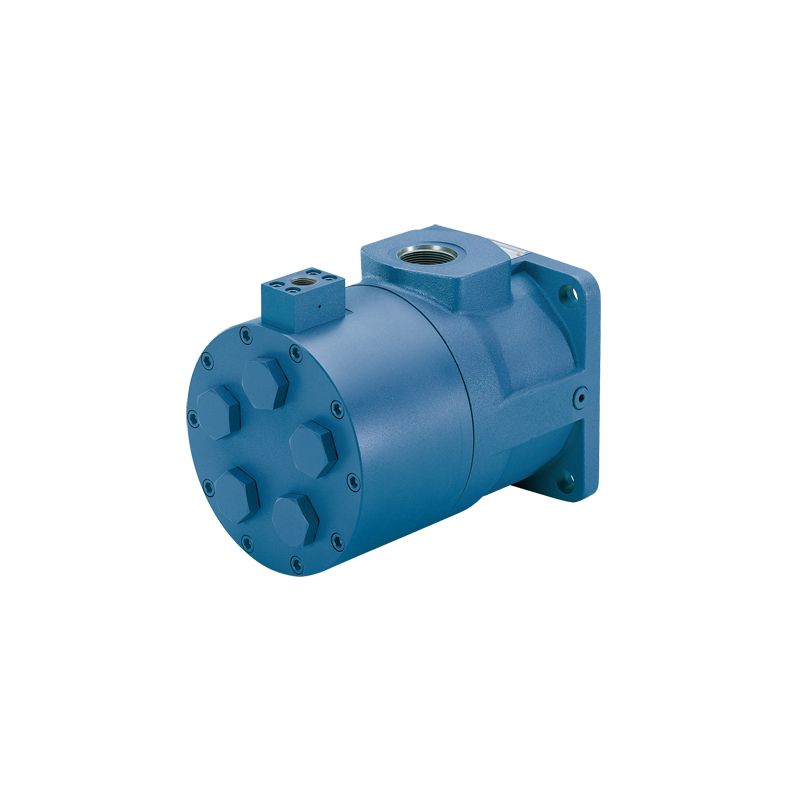

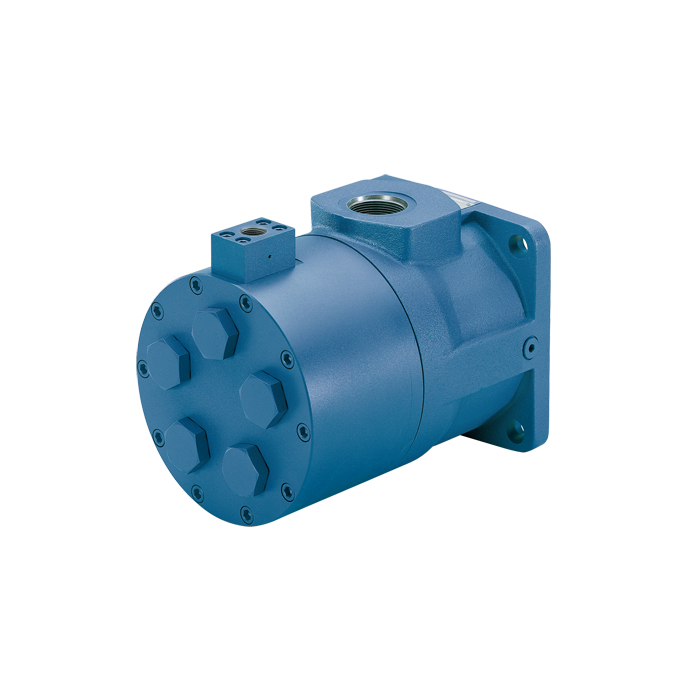

Dynex PF4200 Series
Dynex

PF4200 Series Pump

DYNEX PF4200 SERIES FIXED DISPLACEMENT CHECKBALL PUMPS

2.2 to 6.7 gpm (8,3 to 25,4 L/min) at 1800 rpm
Rated: 8 000 psi (560 bar), Maximum: 20 000 psi (1380 bar)

  • A wide range of fluid compatibility, for reliable operation with low-lubricity, low viscosity fluids.
  • Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
  • Shaft Options: Standard keyed, Optional spline.
  • Seal Options: Standard Fluorocarbon with high-pressure shaft seal. Optional EPR seals for use with some phosphate ester fluids.

Dynex Checkball P/Pump Catalogue

Full catalogue

Download (2.53M)

Dynex Checkball pump Ser. n Inst

Download (818.33k)

Dynex Pump Application Guide

Download (1.76M)

Dynex PF4200 Series Pump

Download (374.96k)
