PV6000 Series Variable Delivery Pumps
Dynex

PV6000 Series Variable Delivery Pumps

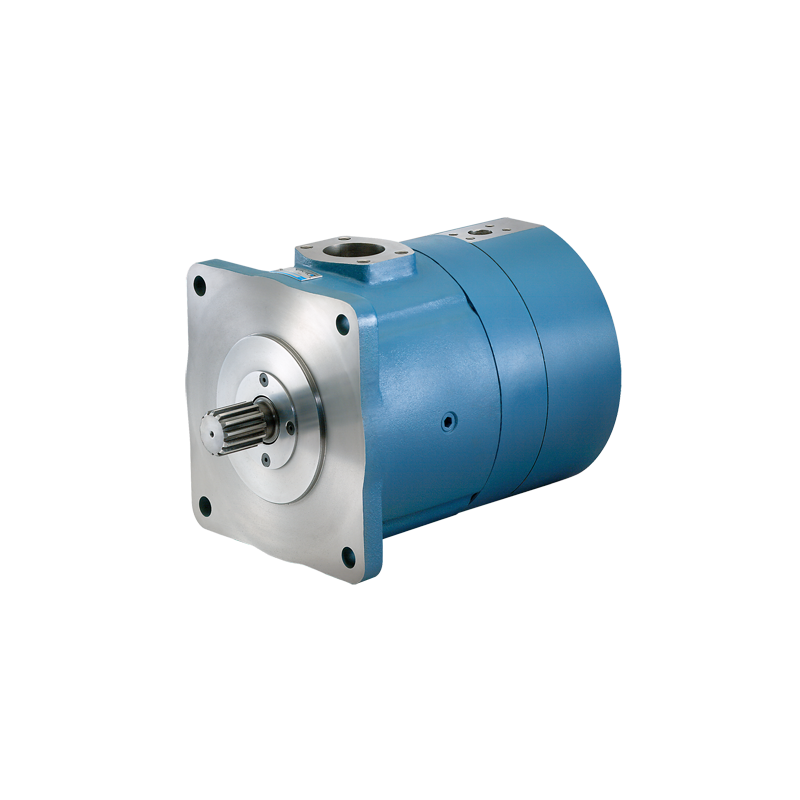

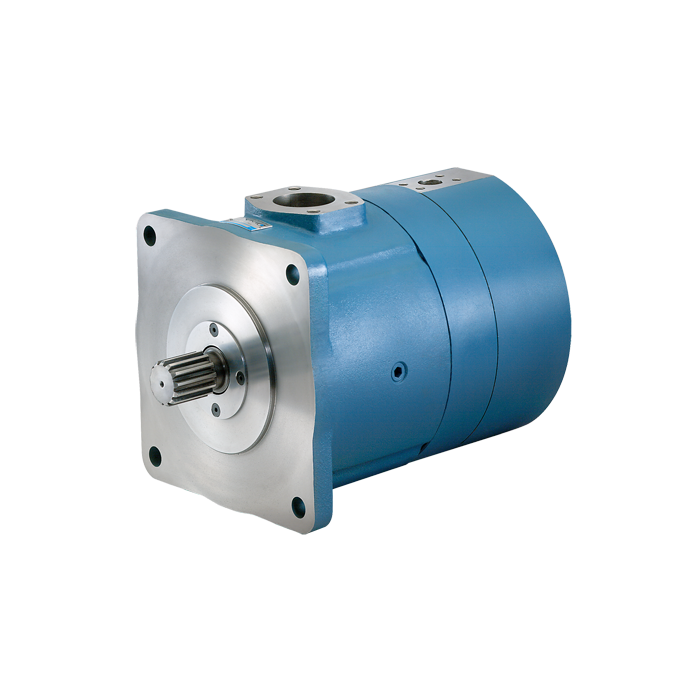

DYNEX PV6000 SERIES VARIABLE DELIVERY CHECKBALL PUMPS

35.4 to 54.0 gpm (134,0 to 204,4 L/min) at 1800 rpm
Rated: 5 500 psi (380 bar), Maximum: 6 000 psi (420 bar)

  • Hydraulically controlled variable delivery.
  • Contamination tolerant, for operation in dirty environments.
  • Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.
  • A wide range of fluid compatibility, for reliable operation with low-lubricity, low viscosity fluids.
  • Shaft Options: Standard keyed, Optional spline.
  • Seal Options: Standard Nitrile. Optional Fluorocarbon, or EPR seals for use with some phosphate ester fluids.
  • Split-Flow® models can supply two independent flows (from five pistons each). These pumps can supply two variable flows, or one fixed and one variable flow.
  • Tandem pump model available.

Dynex Checkball P/Pump Catalogue

Full catalogue

Download (2.53M)

Dynex Checkball pump Ser. n Inst

Download (818.33k)

Dynex Pump Application Guide

Download (1.76M)

Dynex PV6000 Series V/D Pump

PV6000 Series Variable Delivery Pump

Download (380.79k)
