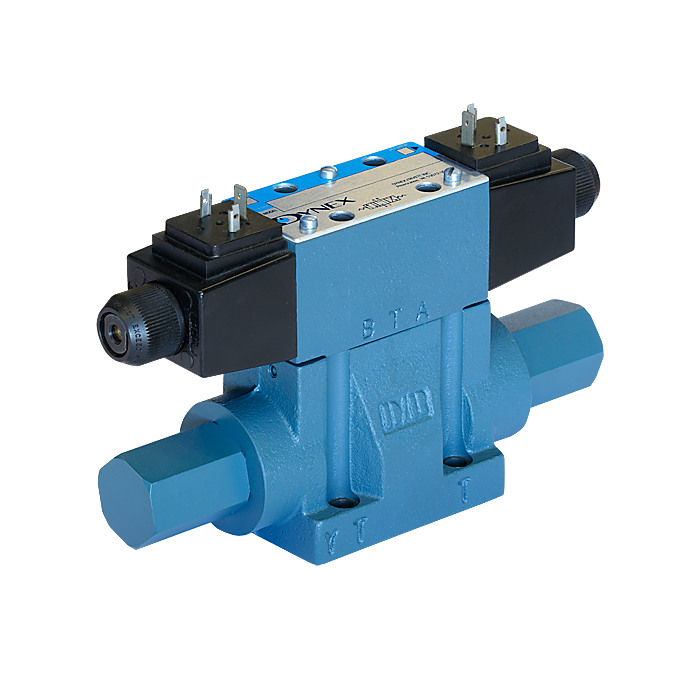

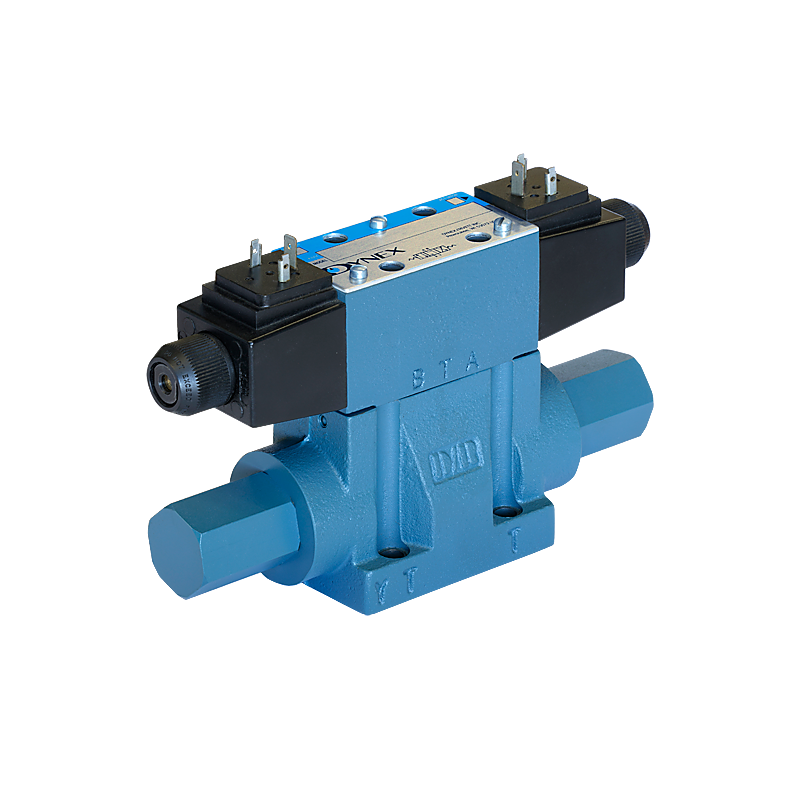

HP05H High Pressure Flow Valve

VH Series Valves

DYNEX VH HIGH-PRESSURE CONTROL VALVES Max Pressure to 15 000 psi (1040 bar). Max Flow to 30 gpm (114 L/min)

Built-in Valve

Features Anti-cavitation valves, maximum pressure relief valves, priority valves and “load sensing” priority valves built in the following series of gear pumps and motors: POLARIS, WHISPER, KAPPA, New KAPPA Compact.

Air operated Valve

Air Operated Needle Valves For Gases and Liquids Pressure ranges from 700 to 7'000  bar / 1'000 psi to 10'000 psi

Check Valve

Double-Block and Bleed Valves

BBV available in 1/4", 3/8" and DBV in 1/4", 3/8", 9/16".

APS Air Pilot Switches Valve

COMPATIBLE WITH MOST FLUIDS FACTORY SET PER CUSTOMER REQUEST NORMALLY OPENED OR NORMALLY CLOSED POSITIONS AVAILABLE MODELS OFFERING ADJUSTABLE SENSING PRESSURES FROM 15-PSI TO 20,000-PSI The APS Air Pilot Switch consists of a high pressure sensor operator connected directly to a three-way air valve that can be operated either normally open (passing air)...

ASV Air Sequence Valve

AIR ACTUATED - NO ELECTRICITY REQUIRED 1/2'' NPT PORTS FOR HIGH FLOW CAPACITY ADJUSTABLE PRESSURE SETTING FROM 25-PSI TO 100-PSI The ASV-100-N-050 Air Sequence Valve is a normally closed adjustable pilot operated valve used to divert air pressure to a branch circuit after a set pressure is achieved. The internal pilot setting can be adjusted from 25 to...

DRV Direct Acting Relief Valve

COMPATIBLE WITH MOST FLUIDS ADJUSTABLE SENSING PRESSURE FACTORY SET PER CUSTOMER REQUEST PRESSURES FROM 100-PSI TO 60,000-PSI MODELS SUITABLE FOR BOTH LIQUID OR GAS SC Hydraulic Engineering direct acting relief valves are available in 1/4" NPT and 9/16-18 60� cone high pressure fitting for relieving pressures from 100 to 60,000 psi. The stainless steel...

ICV Inline Check Valve

PRESSURES UP TO 15,000-PSI COMPATIBLE WITH MOST FLUIDS STAINLESS STEEL CONSTRUCTION CAPABLE OF RESISTING HIGH SHOCK LOADS CRACKING PRESSURE WITHIN 1-PSI TO 3-PSI SC Hydraulic Engineering inline check valves are designed for high shock loads using a ball check for positive sealing. The all stainless steel construction will handle most liquids or gas....

PRO & PRC Pressure Release Valve

PRESSURES UP TO 30,000-PSI COMPATIBLE WITH MOST FLUIDS AIR ACTUATED - NO ELECTRICITY REQUIRED NORMALLY OPENED OR NORMALLY CLOSED POSITIONS AVAILABLE SC Pressure Release Valves are available in normally open and normally closed configurations. All of the valves are air actuated and are compatible with most fluids including water and synthetic compounds....

Throttle Check Valve

Dr. Breit Throttle Valves are now available at Hydraulic Systems Pte Ltd. Throttle valves are best used in flow metering while adjusting the required flow of the needle valve. You can use this even on both flow directions to control the speed of the actuator. However, for parallel flow path the reverse flow will be blocked if you are equipped with a check...

Check Valves

Check valves provide unidirectional flow, sealing against reverse flow, and are commonly used on the outlet side of a pump.   Check valves are manufactured with zinc plated carbon body and hardened stainless steel in-line poppet to provide a metal-to-metal seal for long life in hydraulic oil and lubricated water.

Relief Valves

Ports: ¾" NPT: Inlet - Male; Outlet - Female Cv = 2.0 For tamper proof option, add "-TP" to the part number

SV-25 Repair Kits

 SV-25 Repair Kit Contents: O-ring Kit; O-rings and backup rings Seal Kit; includes O-ring Kit and seal rings Minor Repair Kit; includes Seal Kit and rotor Major Repair Kit; includes Minor Repair Kit, thrust washers and balls

SV-50 Repair Kits

SV-50 Repair Kit Contents: O-ring Kit; O-rings and backup rings Seal Kit; includes O-ring Kit and seal rings Minor Repair Kit; includes Seal Kit and rotor Major Repair Kit; includes Minor Repair Kit, thrust washers and balls

SV-100 Repair Kits

SV-100 Repair Kit Contents: O-ring Kit; O-rings and backup rings Seal Kit; includes O-ring Kit and seal rings Minor Repair Kit; includes Seal Kit and rotor Major Repair Kit; includes Minor Repair Kit, thrust washers and balls

SV-150 Repair Kits

SV-150 Repair Kit Contents: O-ring Kit; O-rings and backup rings Seal Kit; includes O-ring Kit and seal rings Minor Repair Kit; includes Seal Kit and rotor Major Repair Kit; includes Minor Repair Kit, thrust washers and balls

SV-25 Directional Control Valve

Port size: 1/4" Cv = .95;  Rated Flow = 10 gpm  Working Pressures available: 3000 and 6000 psi

SV-50 Directional Control Valve

Port size: 1/2" Cv = 3.2   Rated Flow = 30 gpm Working Pressures available: 3000 and 6000 psi

SV-100 Directional Control Valve

Port size: 1" Standard: Cv = 9.2   Rated Flow = 75 gpm Dual Pressure: Cv = 3.2   Rated Flow = 30 gpm Spring Center: Operating pressure 1500 psi Working Pressures available: 3000 & 6000 psi

SV-150 Directional Control Valve

Port size: 1-1/2" SV-150: Cv = 21  Rated Flow = 180 gpm SV-150DP: Cv = 10  Rated Flow = 90 gpm Working Pressures available: 3000 & 5000 psi

SV-200 Directional Control Valve

Port size: 2" Cv = 33 Rated Flow = 300 gpm

SVS SubSea ROV Operable Valve

SVS series valves are rotary operated and designed for subsea service, specifically ROV intervention applications.   They feature a load balanced rotor shaft which assures smooth operation under all operating conditions.   There are three basic handle options (tee, paddle and straight), which can be customized to meet special requirements.   Valves can be...

SVT-Topside/Splashzone

SVT series valves are rotary manually operated, topside/splashzone service and designed for deck mounted marine applications, where they are exposed to salt water spray.   The operator components are protected from the environment by a sealed housing.   Detented or spring centered operation is available.   Valves can be provided with alternate porting.

SVX-25 Valve with Modular Actuator

Port size: 1/4" Cv = .95;  Rated Flow = 10 gpm  Working Pressures available: 3000 and 6000 psiSeveral configurations are available: 2 position air actuated 2 position hydraulic actuated 3 position air actuated 3 position spring centered hydraulic actuated 2 position solenoid piloted All actuator models have manual override feature, except spring centered.

SVX-50 Valve with Modular Actuator

Port size: 1/2" Cv = 3.2   Rated Flow = 30 gpm Working Pressures available: 3000 and 6000 psiSeveral configurations are available: 2 position air actuated 2 position hydraulic actuated 3 position air actuated 3 position spring centered hydraulic actuated 2 position solenoid piloted All actuator models have manual override feature, except spring centered.

SVX-100 Valve with Modular Actuator

Port size: ¾" and 1" Standard: Cv = 9.2   Rated Flow = 75 gpm Working Pressures available: 3000 & 6000 psi Actuated operation: 2 position Manual operation: 3 positionSeveral configurations are available: 2 position air actuated 2 position hydraulic actuated 3 position air actuated 3 position spring centered hydraulic actuated 2 position solenoid...
